New V-LCD51 5in. Monitor – LP-E6 Battery and Battery Adapter Kit Video Monitors Viewfinders

The monitor is an on-camera panel with a full selection of useful  features. The features are accessible on a straight-forward on-screen  menu and operable by front panel buttons. Four of the buttons can be  configured to each control a different feature.

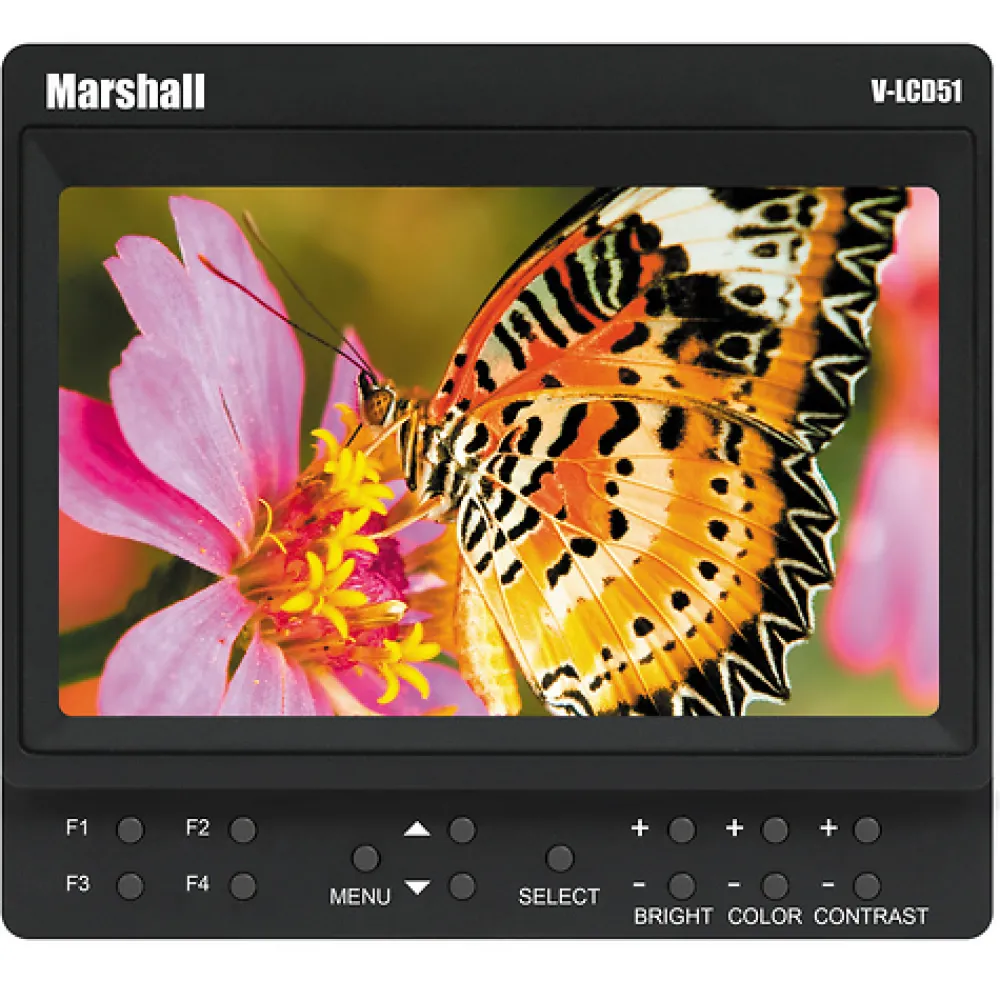

A 1.2 megapixel, active matrix, TFT LCD monitor, the V-LCD51 is  LED-backlit and has a resolution of 800 x 480. It features 300 nit  brightness and a 600:1 contrast ratio, and it lets you switch between  full-screen, 4:3 and 16:9 aspect ratios. When in full-screen mode, the  monitor automatically scales incoming images to fit the screen.

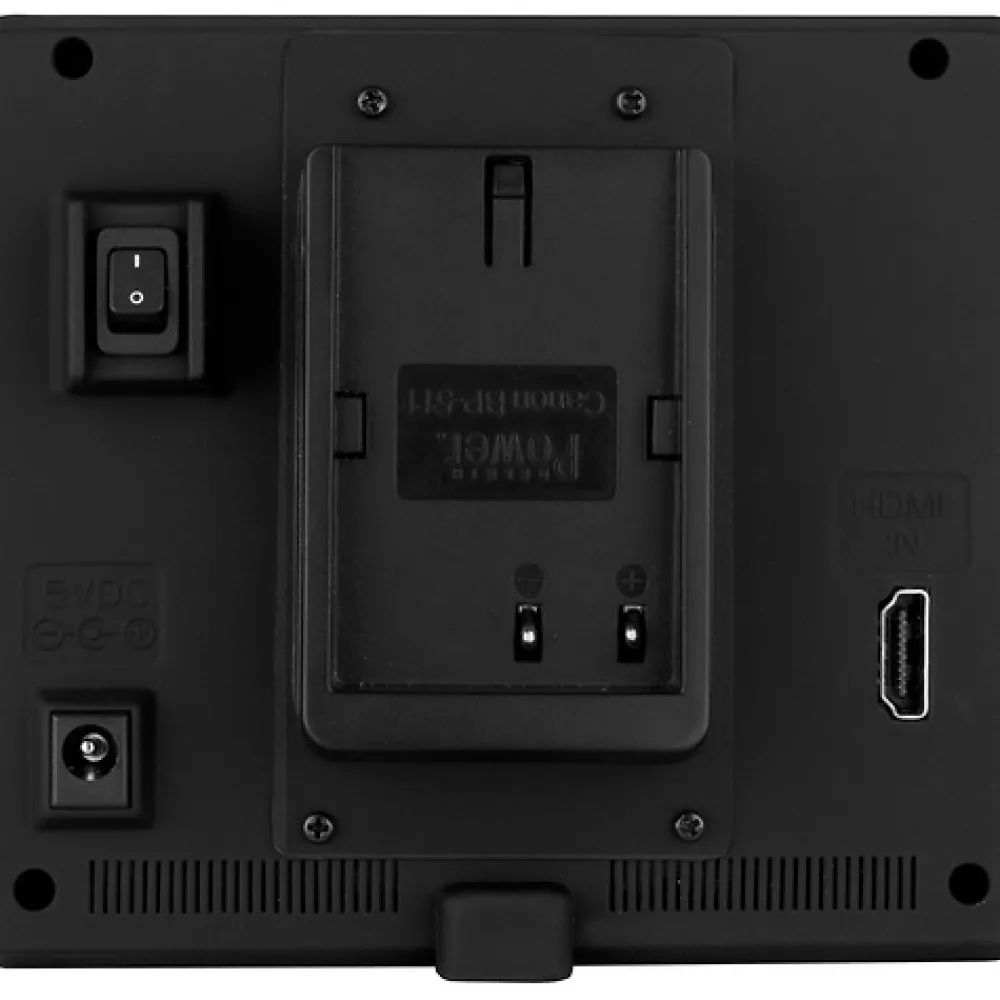

The rear panel has an HDMI input for connection to a camera, and the  bottom has 1/4″-20 screw-hole for attachment to a camera (via the  included hot shoe adapter).

Confidence Features

• RGB Bias and Gain fine-tunes red, green, black color balance
• RGB Check Field analyzes individual color components of an image
• Pixel-to-Pixel shows a portion of an incoming image in its native resolution
• Peaking indicates with red outlines which parts of an image are in sharp focus
• HDMI Ratio Detect auto-detects the proper Aspect Ratio setting of incoming video
• HDMI Color Space auto-detects / manually selects the color space of incoming video
• Additional features: RGB Field Detect / Image Flip / Freeze Frame / Mosquito / Markers
• Three color temperature presets to choose from: 5500K, 6500K, 9300K

User-Configurable Function Buttons

The following features can be configured into the user-configurable function buttons:

• Ratio
• Check Field
• Image Flip
• Mosquito Filter
• Peaking Filter
• False Colors
• Freeze Input
• Aspect Markers
• Center Marker
• Marker Enable
• Pixel-to-Pixel

Monitor Hood: Shields from Excessive Light

• Easily attaches / removes by a strip of adhesive-backed hook and loop material
