New RED Weapon / Scarlet-W / Raven Advanced Accessory Kit Camera Support Systems

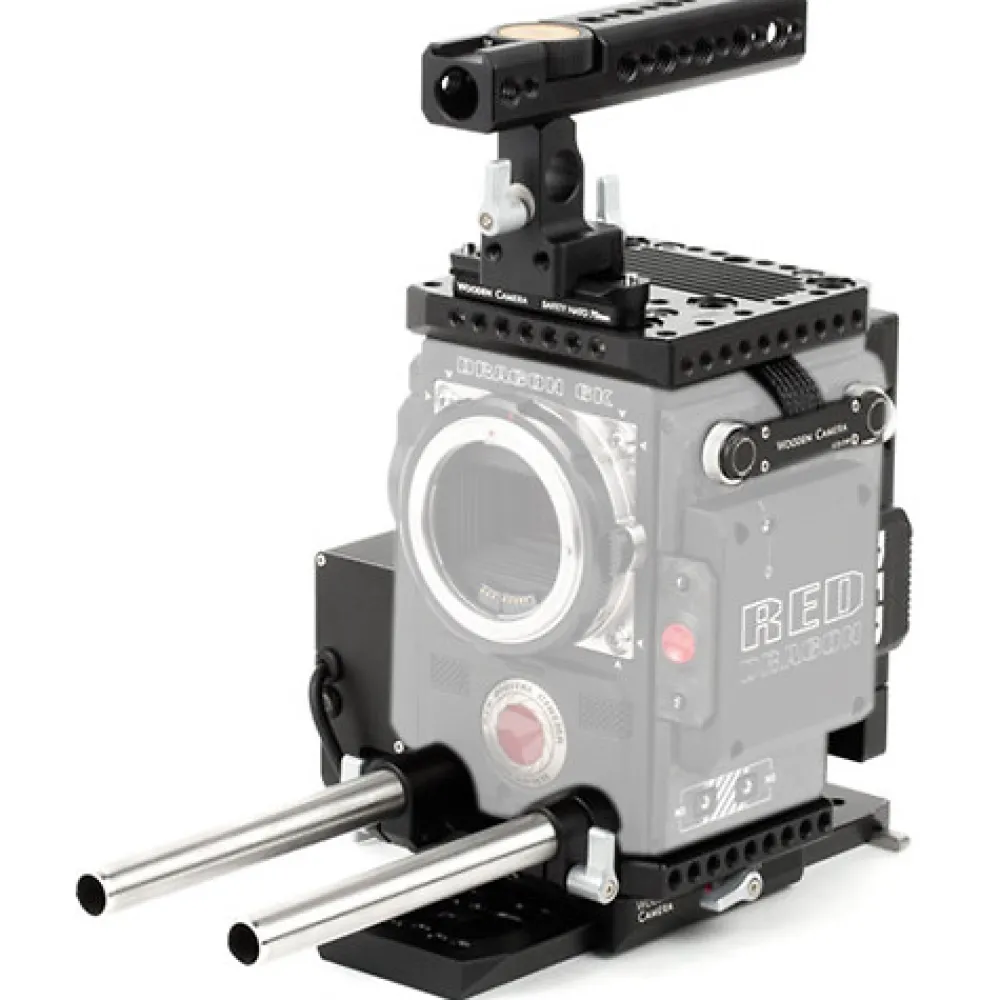

The Wooden Camera RED Weapon / Scarlet-W / Raven Advanced Accessory Kit includes the Easy Riser baseplate, with 1/4″-20 and 3/8″-16 mounting points on the bottom, as well as 1/4″-20 threads on the side for attaching accessories. The Riser also raises the camera to correct lens height when using a bridgeplate built to RED standards. The LW 15mm (LWS) Bracket attaches to the Easy Riser to hold (2) 6″ 15mm Rods at the correct lens height.

The Easy Top plate converts the LCD pogo interfaces to two standard LEMO 16-pin compatible connectors, which can be rotated in 45° increments. Additionally, a Fischer 3-pin port is located on the side of the top plate and can be used with any ARRI-standard remote trigger.

A NATO Handle Kit (Plus, 70mm) is also included. This quick release handle features a rotating top grip which allows the handle to be quickly turned forward for balanced carrying. A lateral 15mm rod clamp enables the attachment of viewfinder mounts and other accessories. The integrated hot shoe mount at the front of the handle is ideal for attaching microphone shock mounts or on-camera lights.

The ventral (bottom) Dovetail Clamp is an ARRI-standard dovetail interface which attaches to the included 8″ Safety Dovetail to enable quick install and removal, as well as easy counterbalancing. An A-Box provides connections for two user XLR microphones, and connects directly to the RED Base Expander Module (sold separately).

IMPORTANT NOTE: The RED Base Expander Module is required for the A-Box to function; phantom power is not available.

Finally, the Quick Back is included to enable the user to attach a V-Mount or Gold Mount plate to the rear of the camera (battery plate sold separately).
