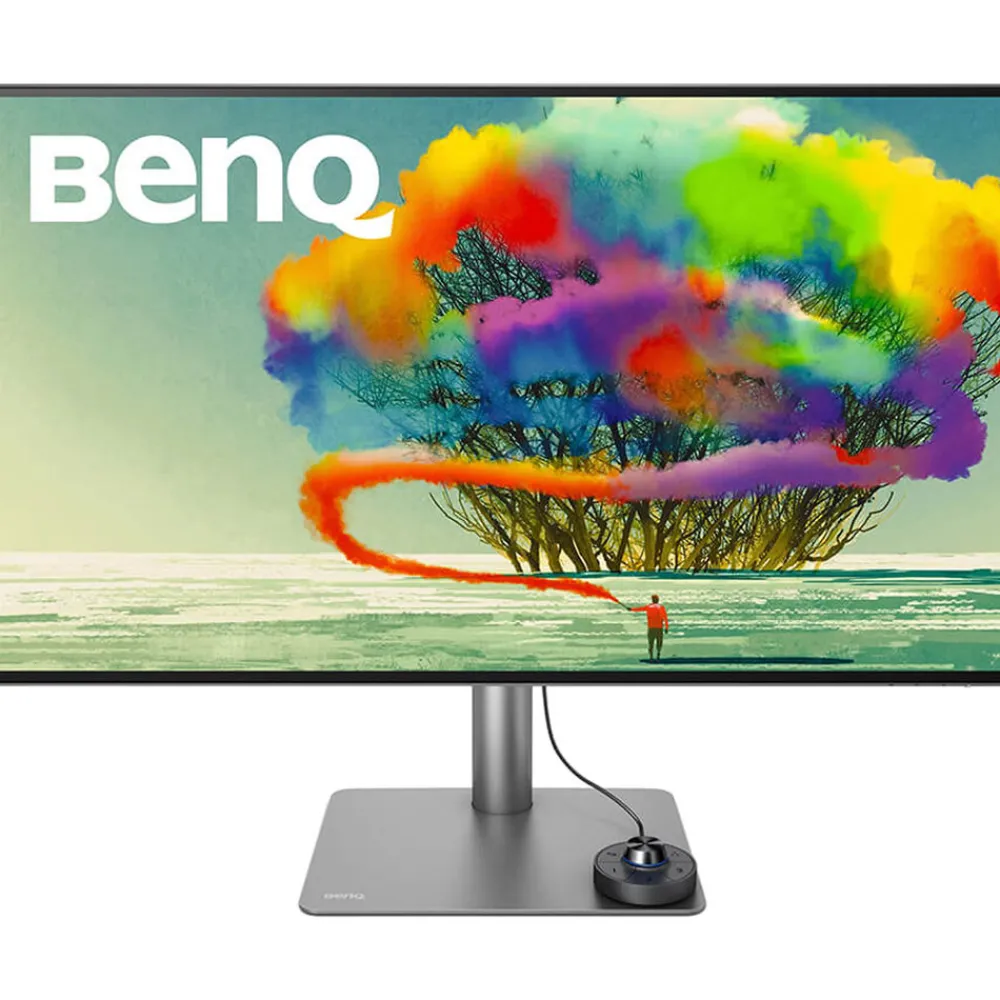

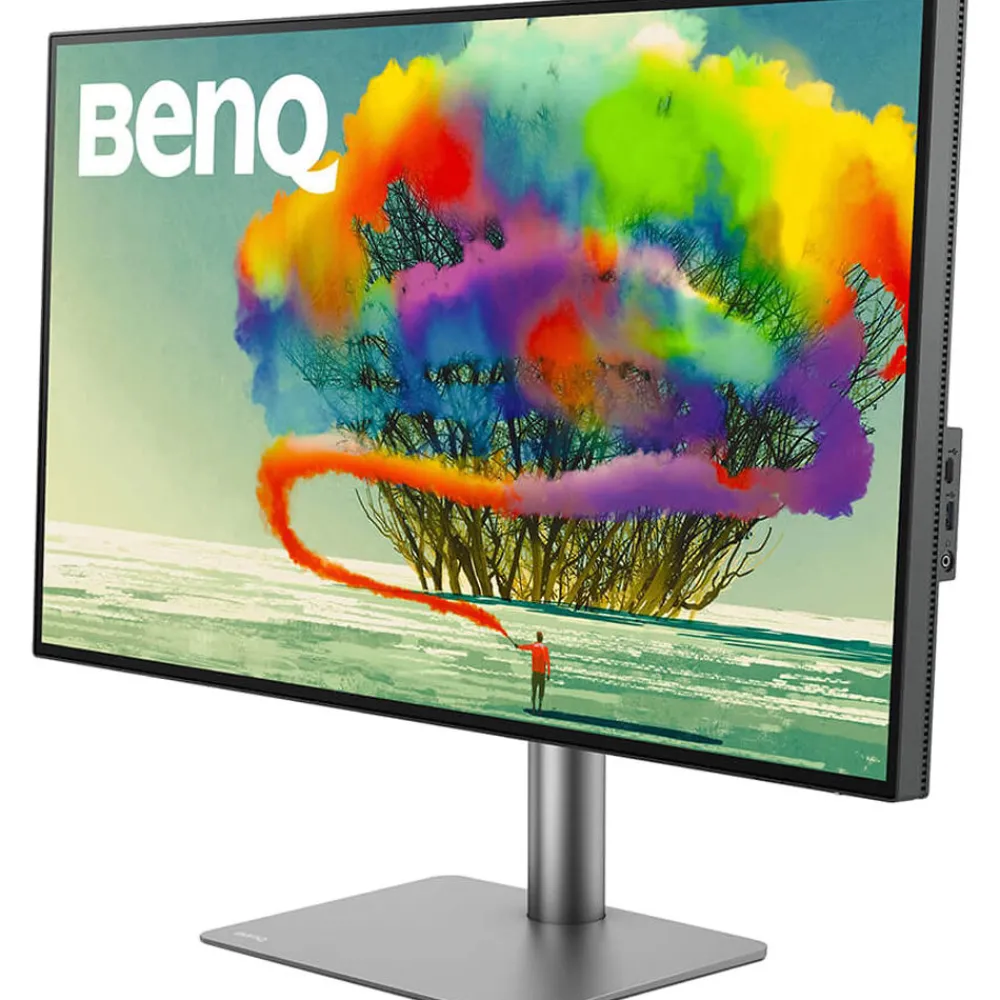

The BenQ PD3220U DesignVue Designer 32 in. 16:9 HDR 4K IPS Monitor has been built to satisfy designers’ needs for color performance, with support for 100% of the sRGB and Rec. 709 color gamuts, 95% of the DCI-P3 color gamut, and HDR10. Driven by BenQ’s AQCOLOR technology and an Ultra HD 4K resolution of 3840 x 2160 with a 60 Hz refresh rate, the PD3220U helps deliver improved accuracy and productivity tailored for specific tastes. It does this using three special modes – CAD/CAM, Animation, and Darkroom – each of which is tailored for different scenarios, allowing users in different fields to achieve similar results.
The PD3220U features In-Plane Switching (IPS) technology, an anti-glare panel coating, 10-bit support for 1.07 billion colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, a dynamic contrast ratio of 20M:1, a 300 cd/m2 brightness rating, 140 ppi, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. There are also two HDMI 2.0 inputs, one DisplayPort 1.4 input, and two Thunderbolt 3 ports that each support DP alt mode for daisy-chaining multiple displays and data transfers. One Thunderbolt 3 port supports devices charging up to 85W, while the other supports it up to 15W. Additional connectivity is achieved using one USB 3.1 Gen 2 Type-C port (data transfers only), three USB 3.1 Gen 2 Type-A ports (downstream), and one USB 3.1 Gen 2 Type-B port (upstream). Audio can be output using the dual integrated 2W speakers or the 3.5mm headphone jack.
BenQ’s PD3220U also supports HDCP 2.2, Flicker-Free technology, Low Blue Light technology, Picture in Picture (PiP), Picture by Picture (PbP), and more. To further help improve viewing and accessibility, it features a vertical tilt of -5 to 20°, a left/right swivel of ±30°, a clockwise/counterclockwise pivot of 90°, and a height adjustment of 5.91″. It is certified for Mac, Windows 10, 8.1, 8, and 7, SolidWorks, and Calman.
Vertical: 178 degrees (89/89)
28.1 x 16.2 x 3.4″ / 714.8 x 412.2 x 86.6 mm (without Stand)
17.42 lb / 7.9 kg (without Stand)
37 W (Eco)
0.5 W (Standby)
- Monitor Stand
- Monitor Base
- Back Cover
- DisplayPort to Mini DisplayPort Cable
- HDMI Cable
- Thunderbolt 3 Cable
- USB Type-B to Type-A Cable
- Hotkey Puck G2
- Power Cord
- Limited 3-Year Warranty
