Overview

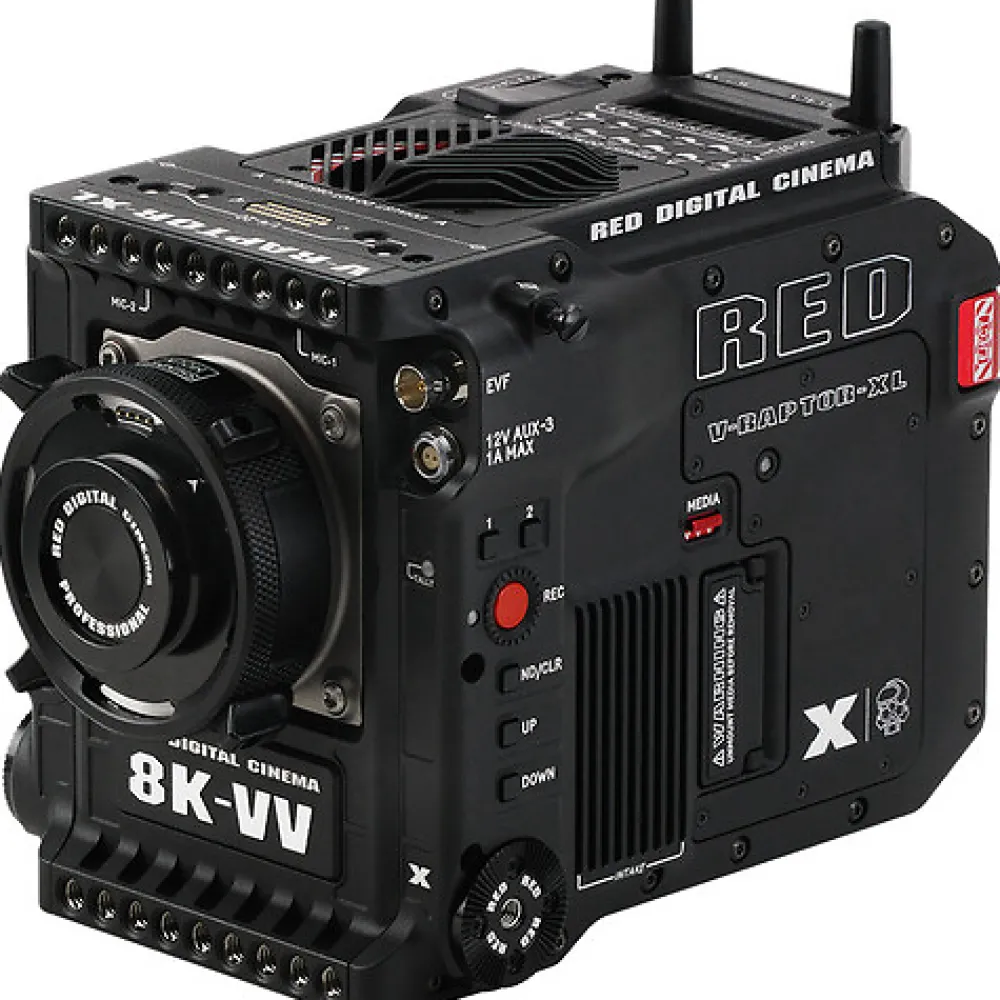

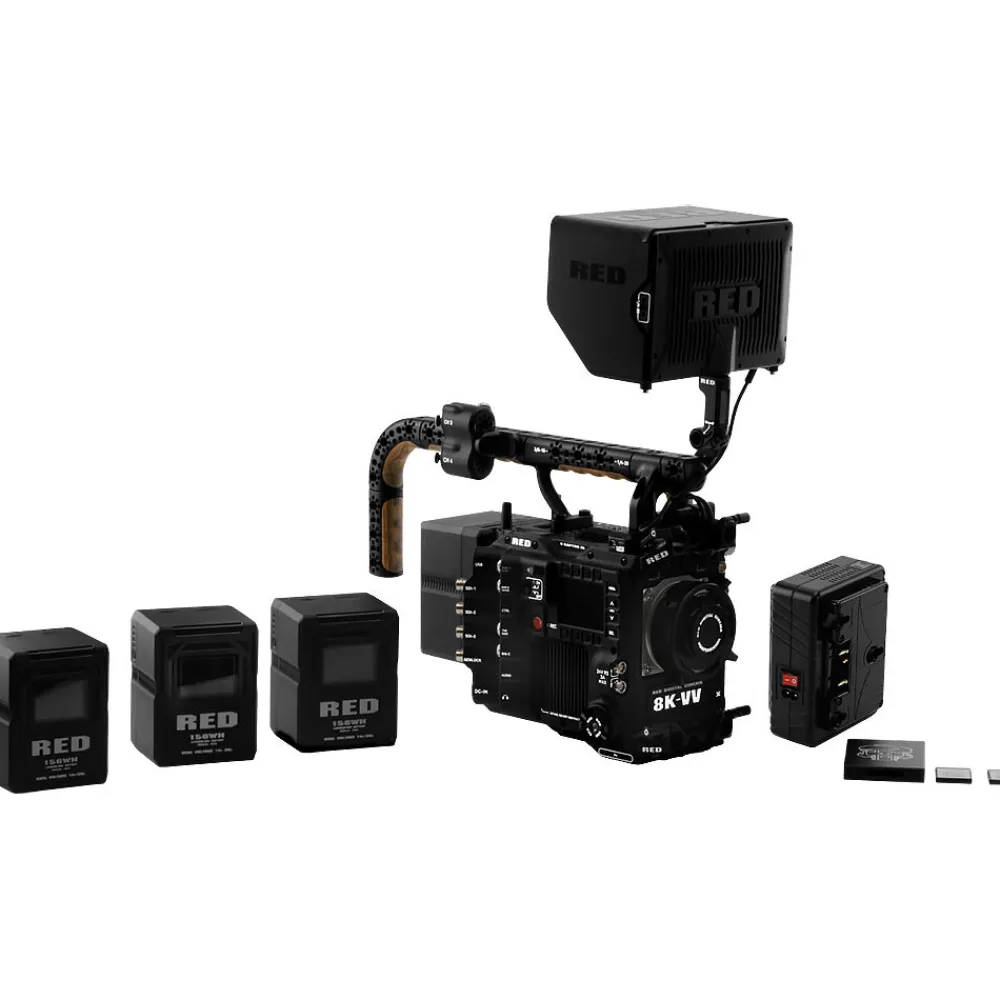

Providing the latest advancements in digital cinema, the RED Digital Cinema V-RAPTOR XL [X] 8K VV Production Pack with Rigid-Hinge Touch 7 in. (Gold Mount) pairs the strengths of the RED DIGITAL CINEMA V-RAPTOR line with the advanced global shutter of the KOMODO camera. This powerful, all-purpose camera incorporates the 8K resolution, crisp global shutter, optimal low-light performance, and high frame rate functions in a production-ready, all-in-one XL camera body with a Gold mount battery system.

UPC – 810016944805

Specifications

Digital Cinema Camera Specs

Sensor

40.96 x 21.6 mm (Vistavision) CMOS

Effective Megapixels

35.4 Megapixels

Megapixels

35 Megapixels

Lens Mount

ARRI PL

Recording Format

REDCODE HQ
8192 x 4320 up to 59.94 fps
7168 x 3780
6144 x 3240 up to 96 fps
4096 x 2160 up to 240 fps
2048 x 1080 up to 480 fps
REDCODE MQ
8192 x 4320 up to 59.94 fps
7168 x 3780
6144 x 3240 up to 160 fps
4096 x 2160 up to 240 fps
2048 x 1080 up to 480 fps
REDCODE LQ
8192 x 4320 up to 120 fps
7168 x 3780
6144 x 3240 up to 160 fps
4096 x 2160 up to 240 fps
2048 x 1080 up to 480 fps
REDCODE RAW
8192 x 4320 up to 120 fps
8192 x 3456 up to 150 fps
7168 x 3780 up to 140 fps
7168 x 3024 up to 175 fps
6144 x 3240 up to 160 fps
6144 x 2592 up to 200 fps
5120 x 2700 up to 192 fps
5120 x 2160 up to 240 fps
4096 x 2160 up to 240 fps
4096 x 1728 up to 300 fps
3072 x 1620 up to 320 fps
3072 x 1296 up to 400 fps
2048 x 1080 up to 480 fps
2048 x 864 up to 600 fps

Dynamic Range

17 Stops

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128) ND Filters

Focus Type

Auto and Manual Focus

Built-In Microphone

Mono

Power Supply

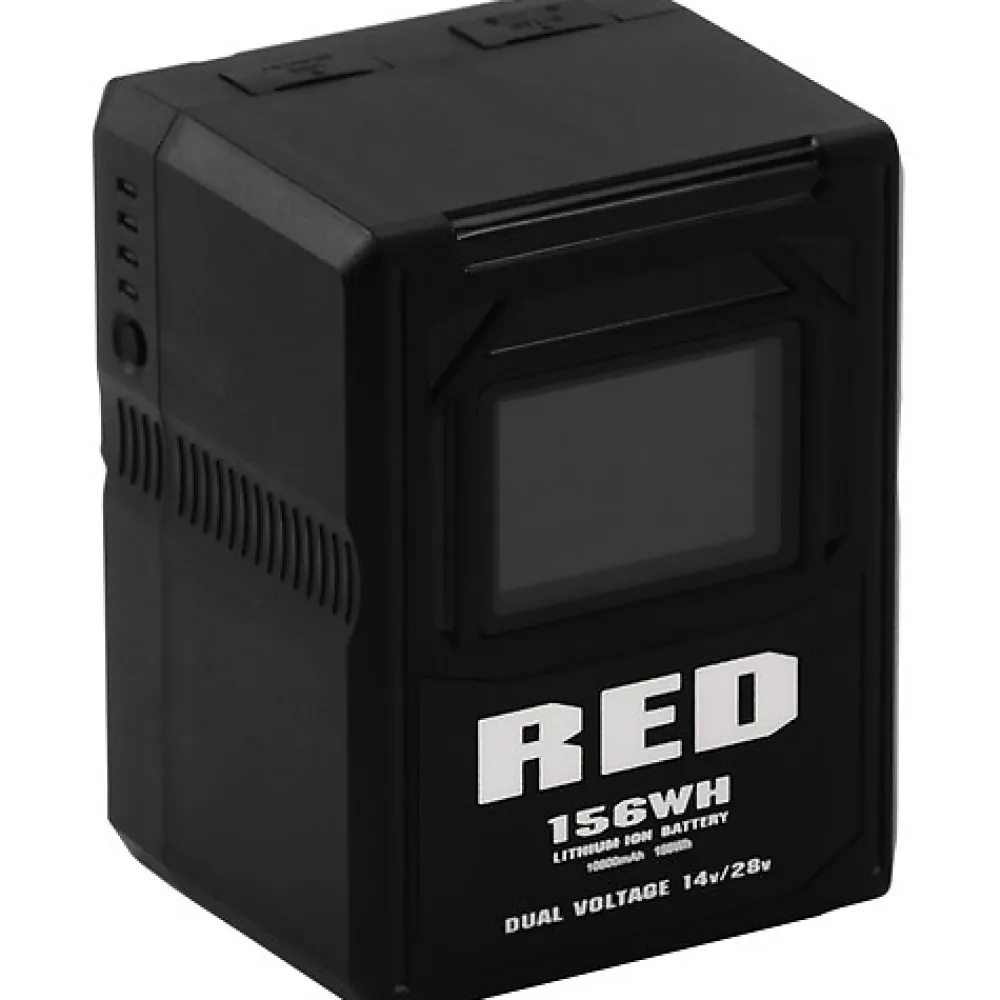

Gold Mount

Dimensions

7.9 x 6.5 x 6″ / 200.7 x 165.1 x 152.4 mm

Weight

7.99 lb / 3.62 kg

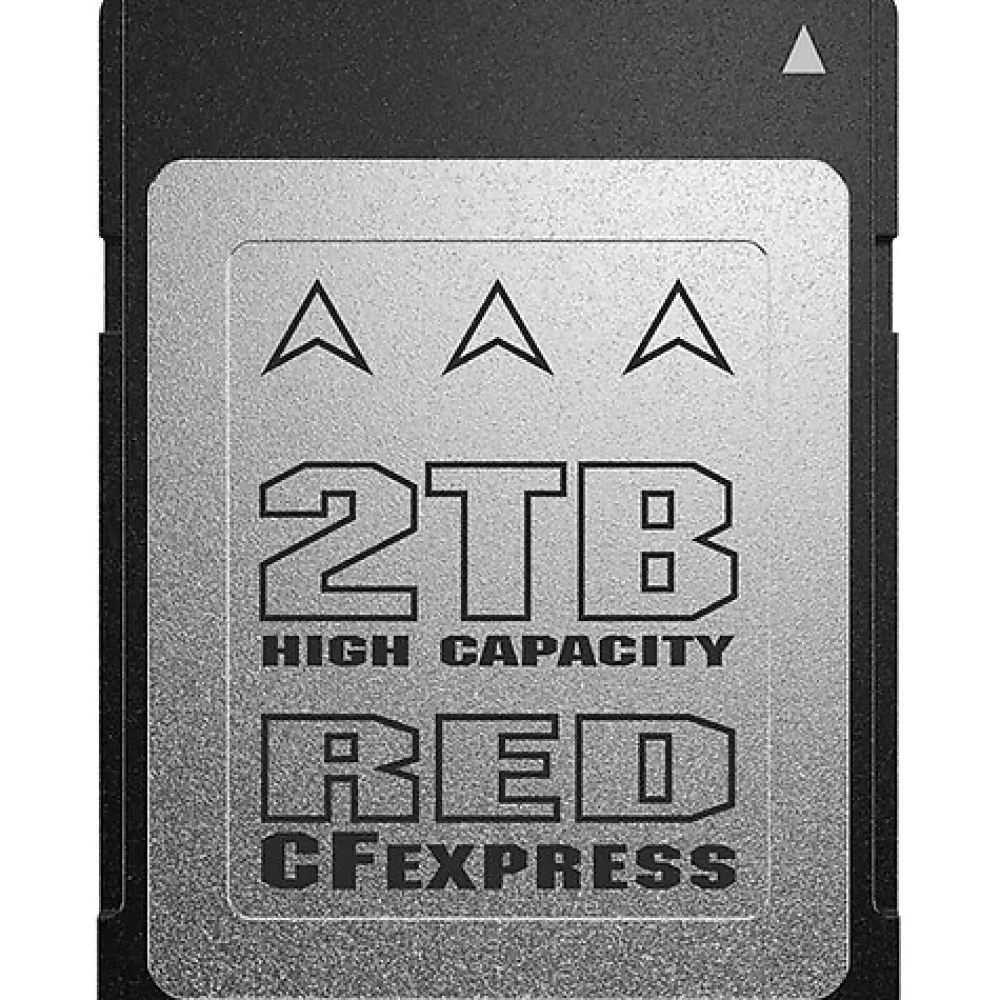

Recording Media

Single Slot: CFexpress Type B (CFast 2.0)

Shutter Type

Electronic Global Shutter

IP Streaming

Yes

Gamma Curve

RED IPP2

Audio Recording

2-Channel 24-Bit 48 kHz

Video Connectors

3x BNC (12G-SDI) Output
1x BNC (3G-SDI) Output
1x Proprietary (Unspecified Signal) Output

Audio Connectors

1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output

Other I/O

1x BNC (Genlock)
1x LEMO 5-Pin (Timecode)
1x 9-Pin (Ethernet) Control/Data Input/Output
1x USB-C

Wireless Interfaces

2.4 / 5 GHz Wi-Fi Video Output

Power Connectors

1x LEMO 4-Pin (19.5 to 34VDC) Input
2x D-Tap (12VDC up to 3 A) Output
1x LEMO 2-Pin (12VDC at 3 A) Output
1x LEMO 2-Pin (12VDC at 1.5 A) Output
1x LEMO 2-Pin (12VDC at 1 A) Output
2x Fischer 3-Pin (12VDC up to 3 A) Output

Operating Temperature

32 to 104°F / 0 to 40°C

Material of Construction

Aluminum

Viewfinder

Optional, Not Included
